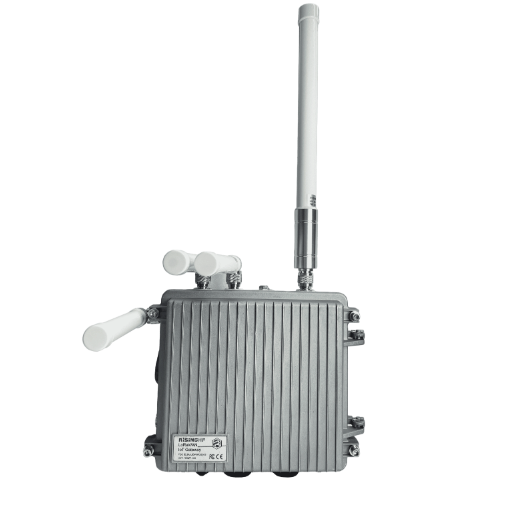

LoRaWAN Outdoor gateway
RHF2S208 is a series of industrial-grade LoRaWAN® gateways embedded Linux operating system, the main control chip is a powerful ARM Cortex-A53 platform, and the main frequency can reach up to 1.2GHz. Equipped with 1x Semtech high-performance multi-channel LoRa® transceiver SX1301 inside.
The gateway is backhaul via 10/100M Ethernet or LTE. An onboard GPS module could be used to generate a PPS signal for synchronization. Furthermore, an internal web UI is integrated for quick configuration and fault diagnosis analysis and maintenance. Benefiting form the RHF2S208 WIFI interface, customers could use devices like PC or laptops to connect with it directly to initial, configure or debug when needed. You can also use Bluetooth to interact with the gateway through the mobile phone APP. Various power supply plans are supported, like DC injector, PoE, and internal LiFePO4 battery. It also provides an acid battery charged with solar panels choice.
Features
- LoRaWAN™ network compliant
- Channels: Up to 16 concurrent channels
- Communication Range：Over 15KM radius
- GNSS for location coordinate information
- Rich backhaul options：Support Ethernet/3G/4G LTE backhaul
- Support thousands to millions of devices depending on the data model
- Compact size210*200*85 mm
- Simple to mount and install
- Ruggedized housing, IP67 Waterproof for outdoor
Ordering information
Package- 1*RHF2S208 LoRaWAN Gateway
- 1*LoRa Antenna
- 1*2.4G WIFI Antenna
- 1*4G Antenna(Optional)
- 1*GPS Antenna
- 1*POE Power Code
| HARDWARE: | COMMUNICATION: |
| −CPU: 1.2GHz, Cortex-A53 | − 10/100M Ethernet Or 3G/4G Modem backhaul |
| − RAM: 3GB | − Device connection protocol: LoRa/LoRaWAN |
| − FLASH: 32GP eMMC | − Half duplex or full duplex optional |
| − USB for debugging | − Compatible with PoE IEEE 802.3 Af/At |
| POWER: | − LoRaWAN™ compliant (433~510MHz or 863~928MHz, Opt) |
| − DC Jack, POE+48V input | − LoRa™ Sensitivity -140dBm@300bps, up to 16 LoRa™ demodulators |
| − 10kA surge protection | − More than 15km in Los and 3km in a dense urban environment |
| − Internal LiFePO4 Battery (optional) | − External GPS, WIFI, and 4G LTE（Opt.) antennas |
| − Average Power: 5.5W | − Synchronization with GPS PPS signal, quick configuration, and maintenance through WIFI. |
| ENVIRONMENT: | − Antenna lightning protection, LoRa Antenna Gain: 2dBi |
| − Ingress protection IP67 | GENERAL INFORMATION: |
| − UV and Impact resistance | − Dimensions: 210 х 200 х 85mm |
| MOUNTING OPTIONS: | − Operating temperature: -40 oC/ +75 oC |
| − Strand mount/box/wall mount | − Storage temperature: -40 oC/ +85 oC |
